280mm Roll Fingerless Type Single Facer Corrugated Machine

Brand Name : SY-PACK

Model Number : SY SF-280S

Certification : ISO9001:2008

Place of Origin : Hebei, China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 5 Sets/ per Month

Packaging Details : Plastic film, metal tray and wood packaging

Delivery Time : 30-60 days after down payment

Type : Packaging Line

Driven Type : Electric

Dimension(L*W*H) : 3X2X2M

Warranty : 1 Year

Marketing Type : New Product 2020

Video outgoing-inspection : Provided

Core Components : Bearing, Motor, Other

Name : Carton Box Making Machine

effective width : 1800mm

design speed : 100m/min

corrugated flute : (UV type or UVV type)

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Printing Shops…

Condition : New

Automatic Grade : Automatic

Voltage : 380V

Weight : 5000KG

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

After Warranty Service : Online support

Contact Now

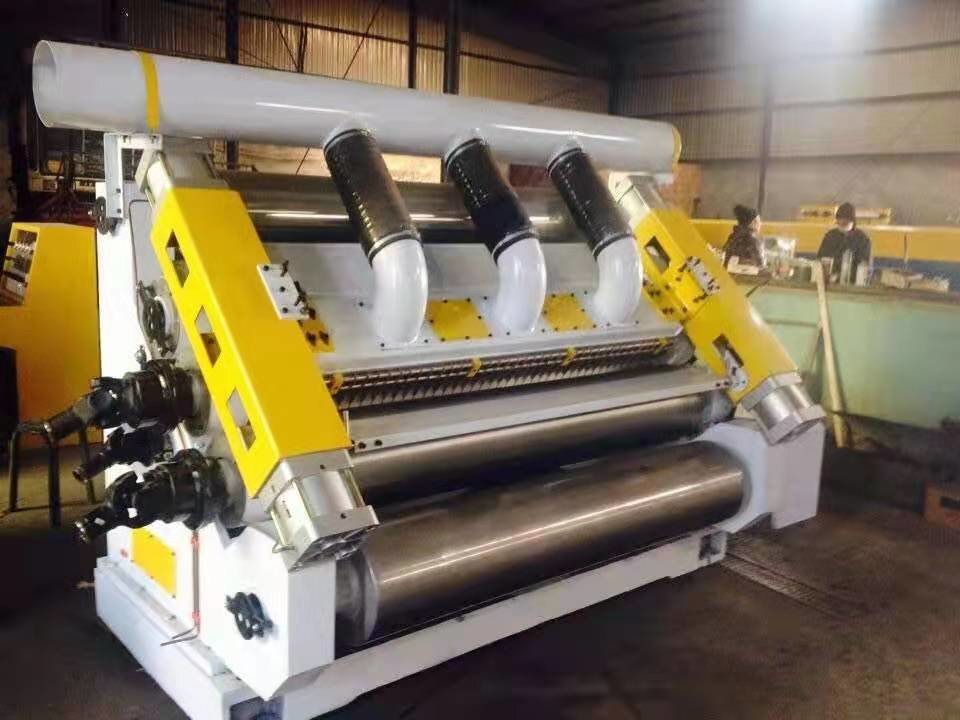

SY SF-280S fingerless type single facer



 Product Features:

1- No need boiler, cardboard quality same with steam heating model

Product parameters:



► Mechanical speed: 80m/min.

► Effective width: 1400mm- 1800mm.

► Adopt the hood type structure, with high pressure and powerful fan, and the air absorption and silencing equipment.


► Wall cast iron structure, wall thickness 130mm. Independent gearbox, universal shaft drive.

► The material of corrugated roller is 48CrMo alloy steel, which is tempered by adjustment, medium frequency quenching, surface polishing and chrome, the diameter of corrugated main roller is phi 280mm, the surface hardness HRC58 degree above.

► Corrugated roller and pressure roller adopt airbag type pressure, cushion shock absorption, long service life.

► Pneumatic control for glue, degumming, gluing roller diameter phi 215mm. After the surface has been polished, it can be treated with the hard chromium plating after the surface of the grooves. The surface of the rubber roller has been polished and treated with hard chromium plating.

► Four sets of electric heat pipes are used to heat and heat the oil, heating fast, without heating furnace, automatic temperature control and control of two groups.
Model SY SF-280S
Temperature range 160—200℃
Air source 0.4—0.9Mpa
Heating method Steam heating
diameter of corrugated roller 280mm
operation direction left or right(determined in accordance with customer plant)
diameter of pressure roller 284mm
